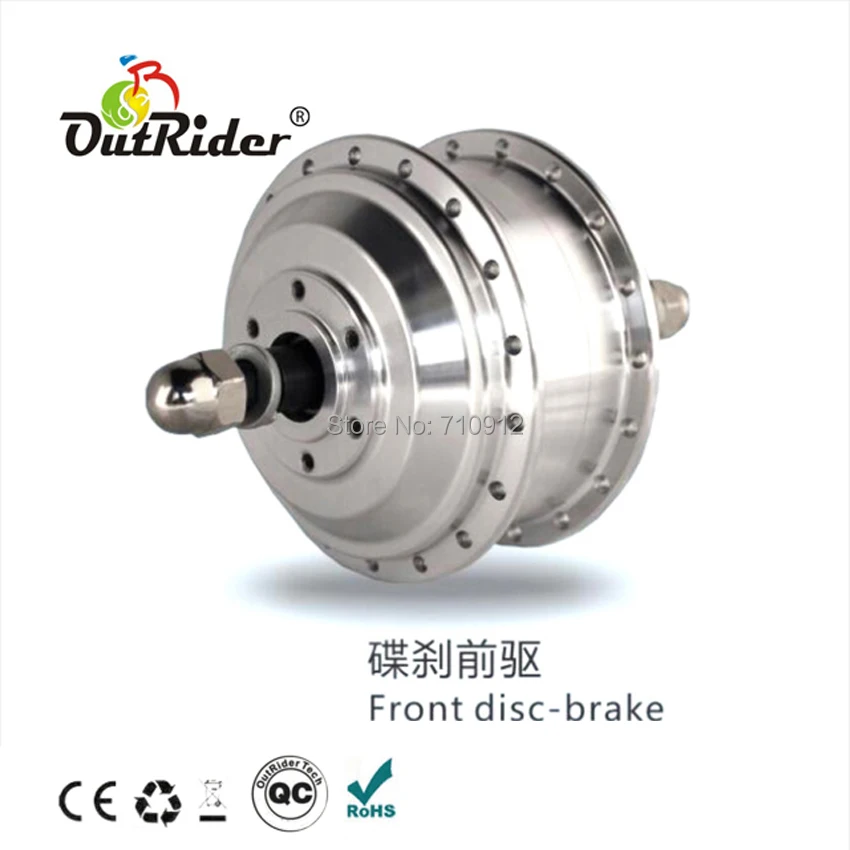

Global Sales48V250WFront Discbrake No Hall Motor Brushless High-speed 128Electric Bike/Ebike/Pedelec MOTOR KIT 300rpm OR01B2

Brand Name outrider

Design Brushless

Motor Type Brushless Gear Hub Motor

Voltage 48V

Wattage 201 - 300w

rotation speed 300rpm

is_customized Yes

Approved\t CE

the spokes holes quantity\t 36 holes

Motor Type\t hall mini hub motor

color silber/black

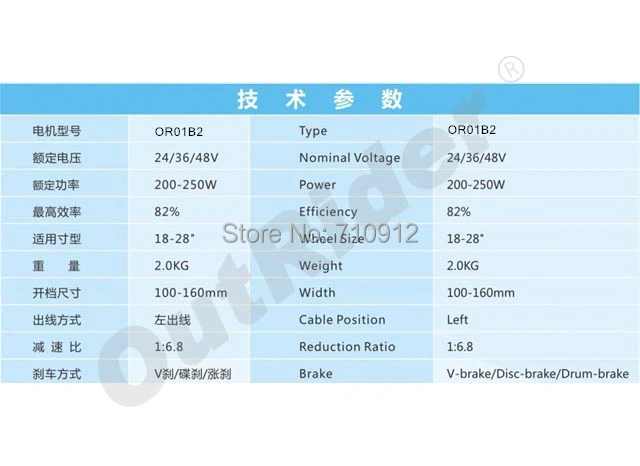

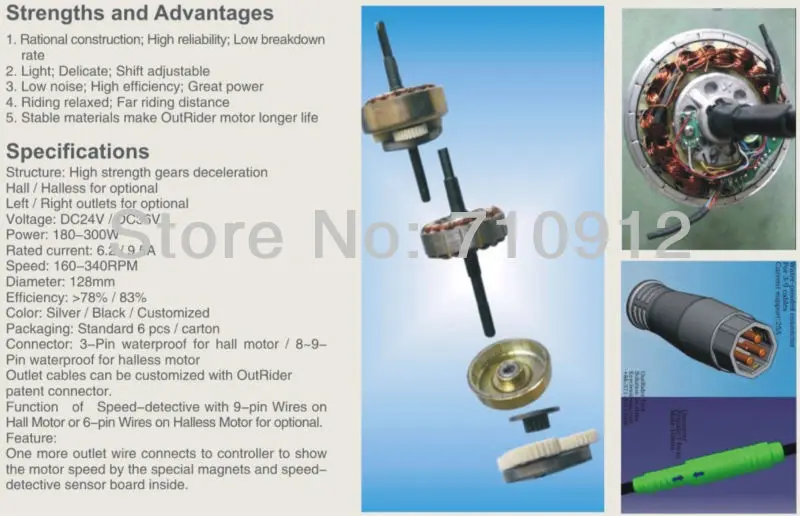

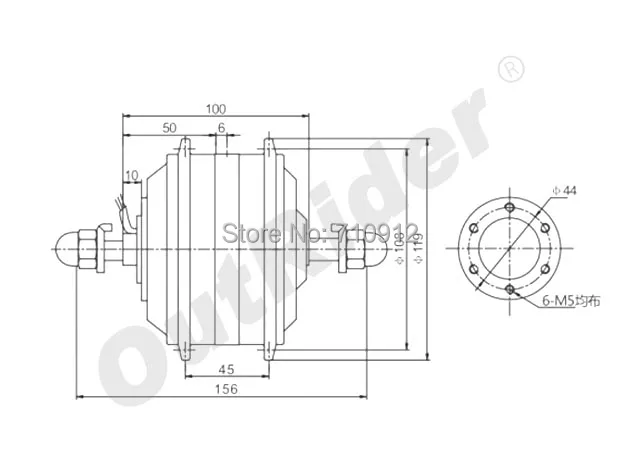

Global Sales 48V250WFront Discbrake No Hall Motor Brushless High-speed 128 mini CE ApprovalElectric Bike/Ebike/Pedelec MOTOR KIT300rpm OR01B2 Width of motor fitwith front fork: 100 mm Standard Outlet Cable Length: 1000mm Water--proof connector cables for optional, pls purchase together, standard outlet 200mm+ extension 1800mm. Specifications: Hall / Halless for optional Left / Right outlets for optional Voltage:DC 48V Power: 200-300W Rated current: 6.2 / 9.5A Speed: 160-260RPM Efficiency: 82% Color: Silver / Black / Customized Packaging : Standard 6 pcs / carton Connector: 3-Pin waterproof for halless motor / 8~9-Pin waterproof for hall motor Outlet cables can be customized with OutRider patent connector Function ofSpeed-detective with 9-pin Wires on Hall Motor or6-pin Wires on Hall Motorfor optional The motor is hall motor ,and the 9-pin waterproof cable is necesssary for the motor .For the motor ,it packaged in excellent carton .Compatible with rear disc -brake and different flywheel. For the motor ,we can make the wheel building of the motor for you . The rim size :16''-28''. you need pay the wheel building fee 34USD-40USD(including the rim fee ,the spokes fee ,the package fee). The following or similar remote areas,such as South America, Croatia, Brazil, Latin America,etc. because of its freight and special tariffs,pls consult customer service before placing orders.Expecting your kind understanding! Thank you in advance! The picture of the motor and the dimension diagram is as following :
