3.9Kg 40Kph 48V 500W brushless gear hub motor for rear Ebike electric bike or electric bicycle

Design Brushless

Motor Type Brushless Gear Hub Motor

Wattage > 400w

Voltage 24V/36V/48V

Rated voltage 24V/36V/48V

Rated power 250W/350W/500W

Wheel size 20inch-28inch

Rated speed 40Km/h

Open size 138mm

Cassette 7S/8S/9S

Cable location Shaft center left

Spoke specifition 12G 36holes,P.C.D 156

Brake type V brake/ Disc brake

Net weight 3.9Kg

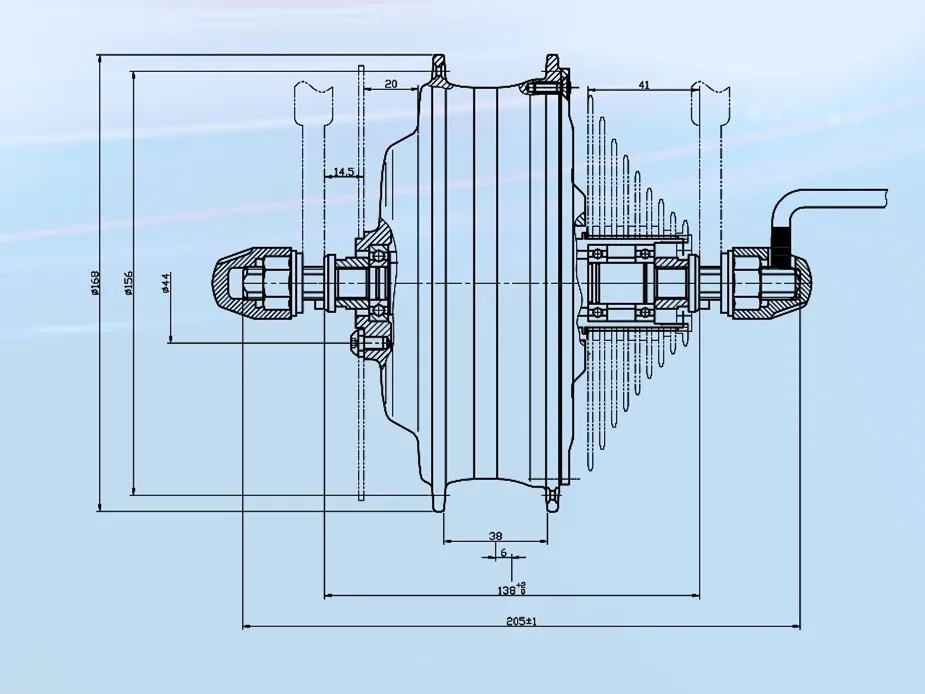

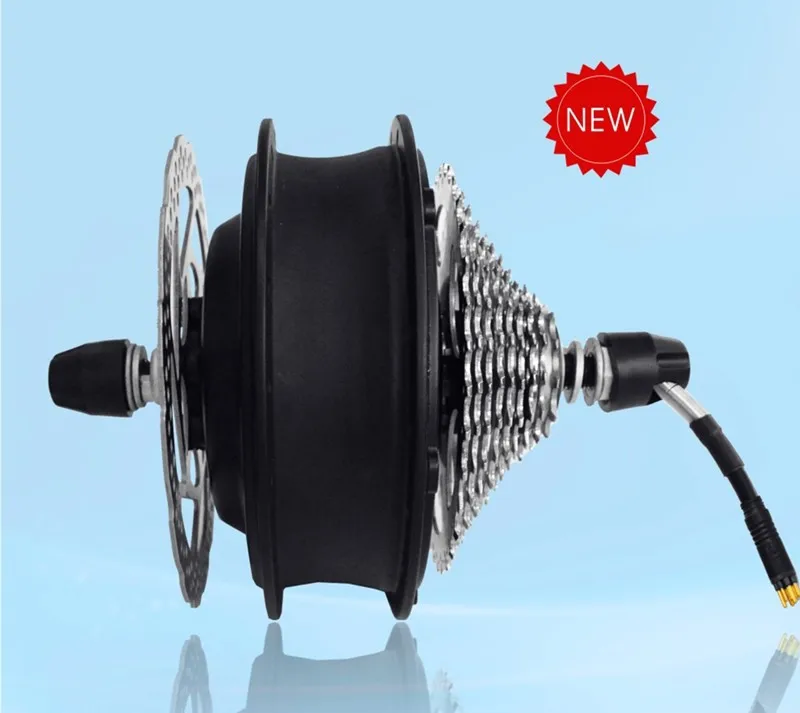

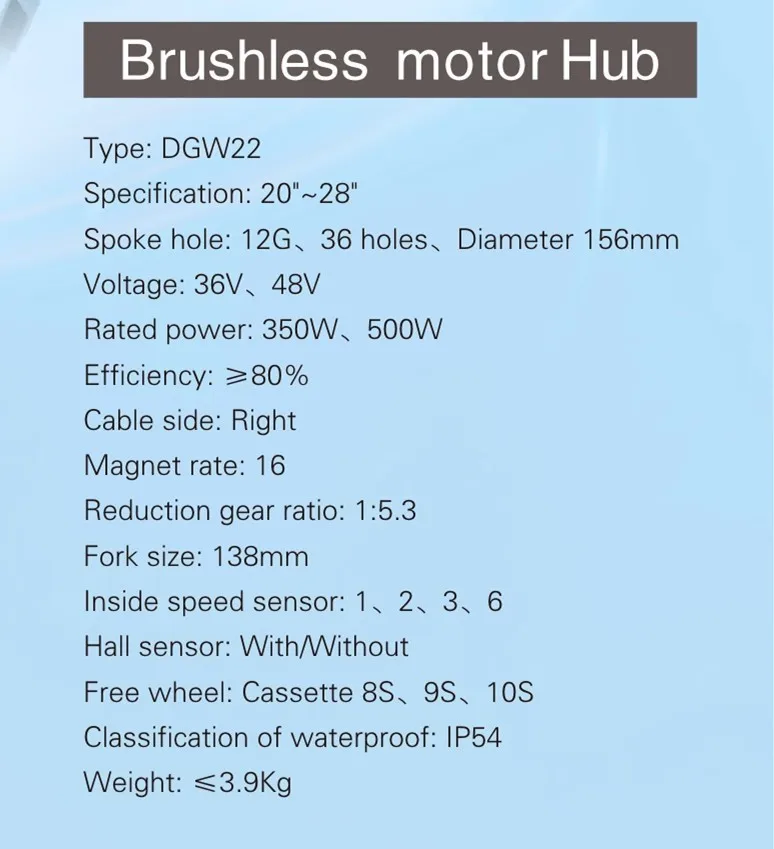

Note: ***** The motor is the version-2 500W hub gear motor.It use betterstator,and bigeer Reduction gear ratio. So the engine has "more power,more torque and higher efficiency"! ***** If you need it,please tell me these details: 1)What's the size of wheel? you can choose 20inch----28inch 2)What's the voltage of your battery? you can choose 24V---48V 3)How fast do you need ?you can choose 20km/h--40km/h(with load) 4)Other requirement..... If you buy directly without any connection,we will send you only the motor with the standard speed for 26 inch wheel. Advantage of the mid kits: 1.The motorcan be mounted on any standard bike 2.High starting torque,Max torque is above 65N.m,good performance on climbing; 3.Big power ,more safty; 4.High efficiency,low consumption,low noise,long travel distance. Productquick details: Drawing of the motor: Appearance: Package
